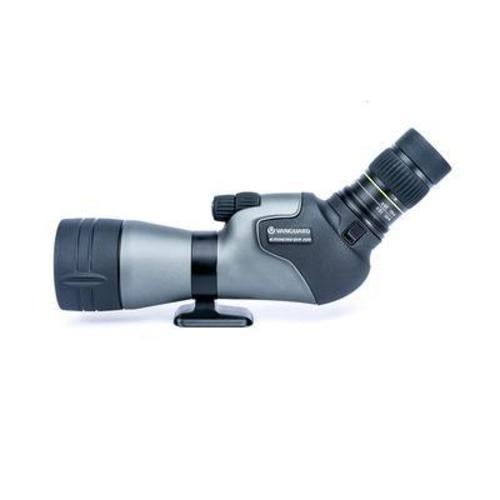

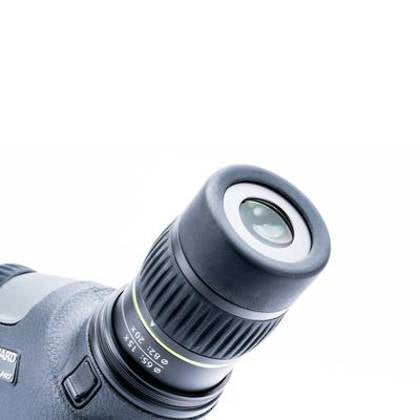

The Endeavor HD Spotting Scope is the most advanced piece of optical equipment Vanguard has ever produced. The optical system employs extra-low dispersion glass (ED) to ensure accurate color rendition and virtually eliminate color fringing. The lenses are all fully multi-coated to ensure optimum light transmission and feature a phase-coated BAK4 roof prism. Endeavor 65A comes with a 65mm objective lens and angled eyepiece with 15-45x zoom magnification. It features an extendable rubber covered eyecup and boasts impressive eye relief even at the highest zoom settings. It also provides a very impressive field of view. A built-in sunshield is included to eliminate glare in direct sunlight and it includes a padded raincoat with sling for carry and protection. Endeavor HD is also equipped with fine and coarse focusing wheels for quick and precision fine tuning adjustments. The Endeavor HD mounts directly to Vanguard tripod heads (and others) that are equipped with the universal mounting plate without the use of a quick shoe.
Features
The optical system employs extra-low dispersion glass (ED) to ensure accurate color rendition and virtually eliminate color fringing.
Extra-low Dispersion glass (ED) for accurate color rendition and minimal fringing
Rubber armored magnesium body
Dual focus wheel for fine and coarse adjustment
100% waterproof & fogproof
Fully multi-coated optics and phase-coated BaK4 prism
Specifications
Bag Features
Weather Proof
Body Material
Magnesium alloy
Category
1165,1166
Color
Black
Diameter of objectives
65mm
Eyepiece Type
angled
Eye Cup
Twist out
Eye Relief
19 - 20 mm
Features
1177,1163,1176,1162
Field of View @1000m
43.8 - 21
Focus System
Center focus
Illuminated Reticle
No
Lens coating
Fully multi coated
Material
Magnesium Alloy
Maximum Power
45x
Minimum Power
15x
Near focus
Ocular Adjustment
± 0
Optics Type
spotting scopes
Outside Dimensions
13 5/8 x 7 1/8
Phase coating
YES
Power
15 - 45
Prism Type
BaK4 prism
Relative Brightness
18.7~2
Series
Endeavor HD
Type
Angled
View Angle
2.7-1.3°
Warranty
Applicable by national law
Waterproof
Yes
Weight
51.1
